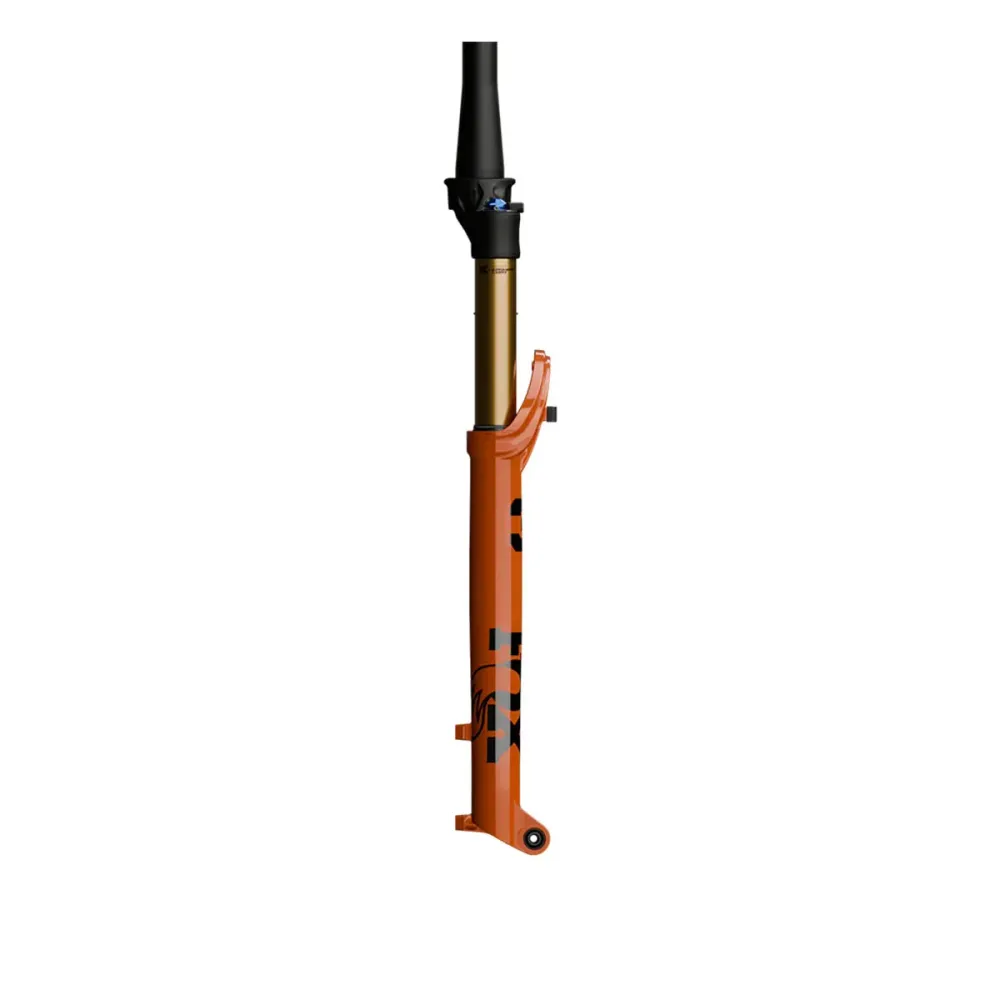

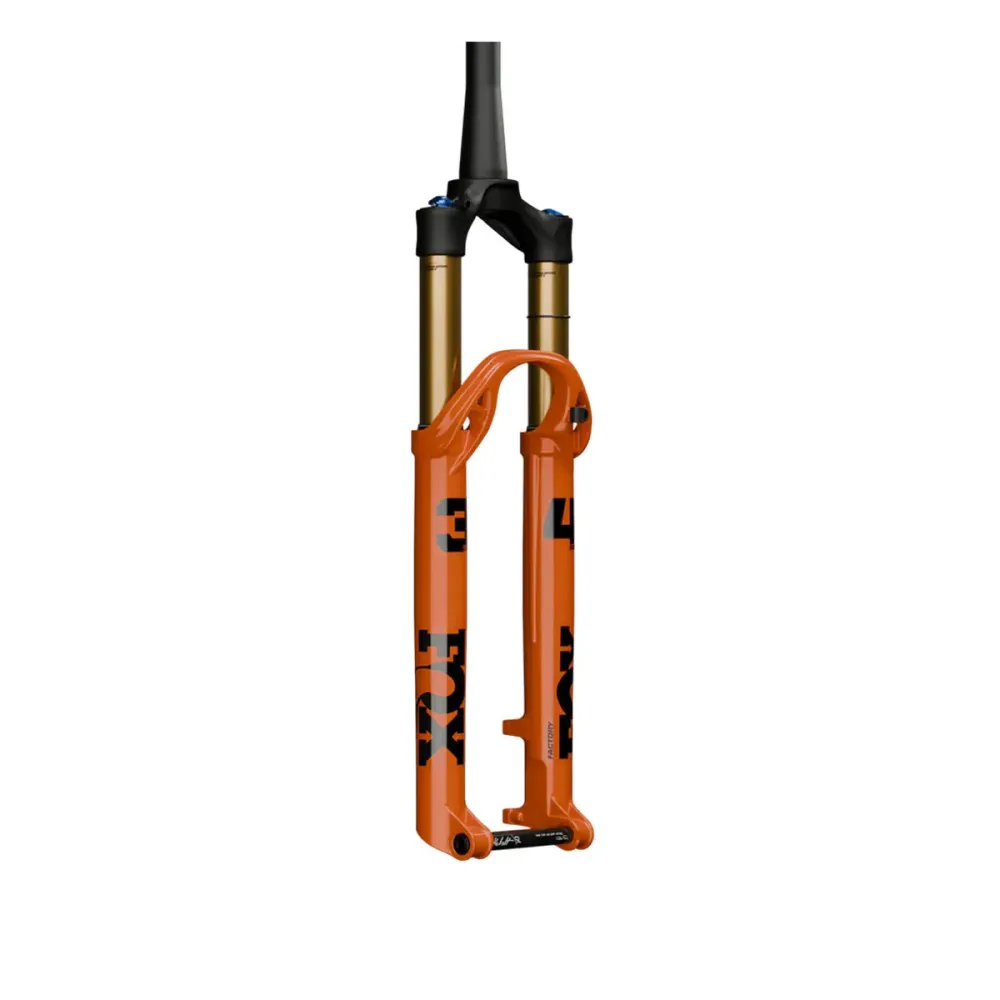

The 34 SL offers unprecedented XC performance in a full-width 34 frame with up to 130mm of travel. Designed for the most technical World Cup XC courses and the most challenging Downcountry, the 34 SL adds greater stiffness, more compliance and minimal weight increase compared to the 34 Step-Cast fork. The remote lever is not included in the Psh-Lk models.
GRIP SL SHOCK ABSORBER SERIES
The GRIP SL is an incredibly lightweight, short-travel-specific shock that not only saves weight but also delivers an unmatched ride feel in its class.
ARCH AGAINST
The arched design wraps around the bottom to increase the fork’s torsional rigidity by 17% compared to the previous XC fork, the 34 Step-Cast.
RACE DAY CORONATION
The 7000 series aluminum chainring is generatively designed with external machining and larger diameter internal bores to further reduce weight.
Technical specifications
- Series: Factory
- Frame: SL
- Wheel Size: 29″
- Travel: 130 mm
- Shock absorber: GRIP SL+
- Damper Controls: Psh-Lk
- Axle: Kabolt SL 110
- Steering angle: 44 mm
- Head tube: 1.5 tapered
- Treatment: Kashima
- Air channels: Syes
- Vent: No
- Axis: No
- Disc Size: 180 Direct Post Mount, compatible up to 203
- Fender attachment: N/A
- Spring: FLOAT EVOL
- Manufacturer weight: 1503 g
Travel 120 mm / Color Orange
Product Code: 910-21-366
Stem material: Aluminum
Mount: Post mount
Headset diameter: 1″ 1/8 – 1″ 1/2 (differentiated)
Spring: Float
Sheath material: Magnesium
Axle dimensions: 15x110mm
Head Material: Forged Aluminum
Offset (setback): 44 mm
Damping: Grip SL
Travel: 120mm
Stem diameter: 34 mm
Wheel size: 29″
